| Boom Specifications | |
| Vertical reach | 47.4m |
|---|---|
| Horizontal reach | 43.3m |
| Reach from front of truck | 40.5m |
| Unfolding height | 9.5m |
| Section articulation | 92°/180°/225°/180°/210° |
| Rotation | 370° |
| Delivery line | 125mm |
| Proportional boom | Yes |
| End hose length | 3.5m |
| Outrigger spread-front | 8.9m(X type) |
| Outrigger spread-rear | 10m(Swing type) |
| Total weight | < 37ton |
| Chassis | MB AROCS 4148 8×4 (EURO6 with GSR) |
| Pump specifications | |
| Maximum output | 170m³/h |
|---|---|
| Concrete cylinder | Ø230×2,100mm |
| Stroke per minute | 33 |
| Concrete pressure | Max. 85bar |
| Hopper capacity | 0.6m³ |
| S-tube | Ø200×Ø180 |
| Hydraulic pump | Rexroth-A20VLO190 |
| Cycling system | Hydraulic with manual overrides |
| Max. aggregate size | 40 mm |

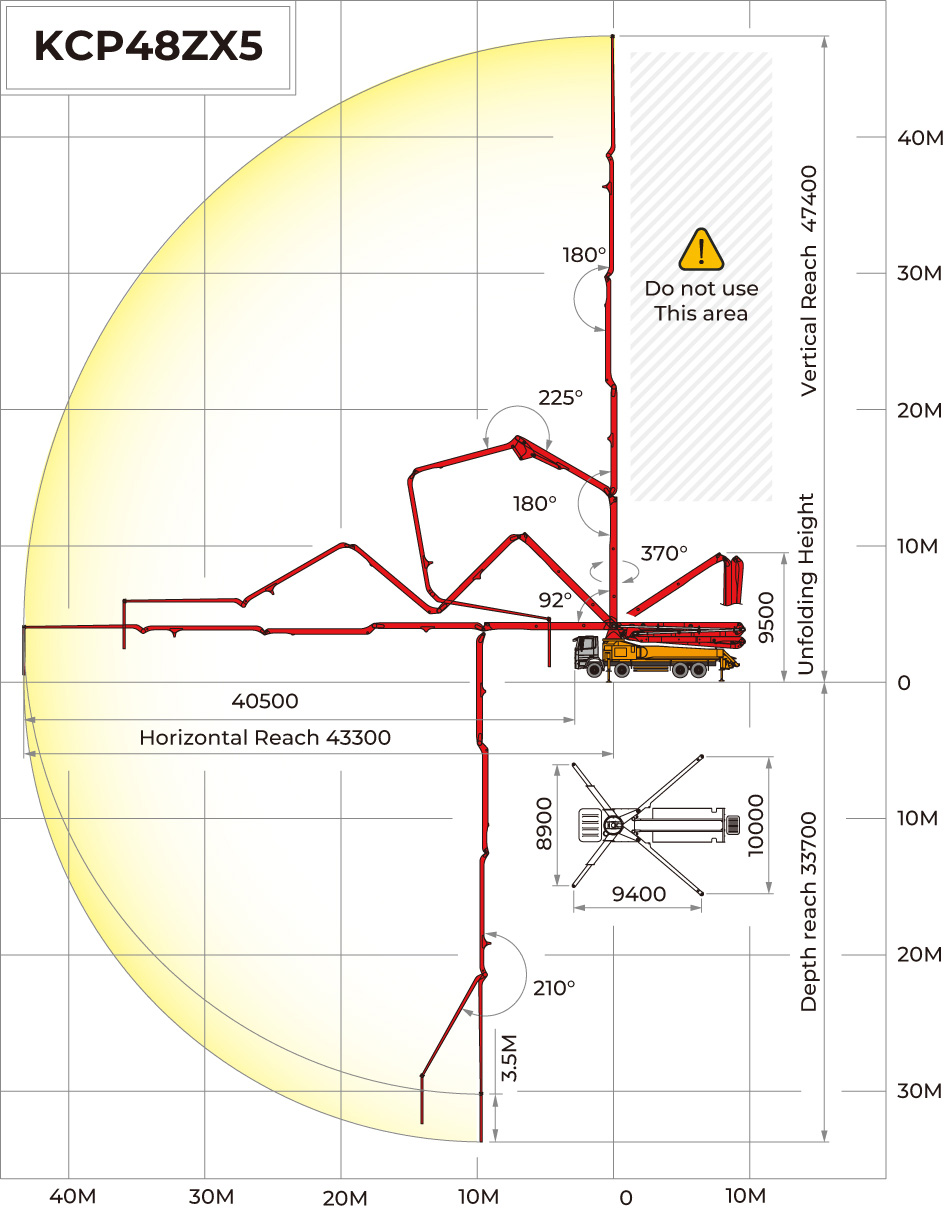

| Working diagram | |
|
|
* All specifications are Maximum theoretical values

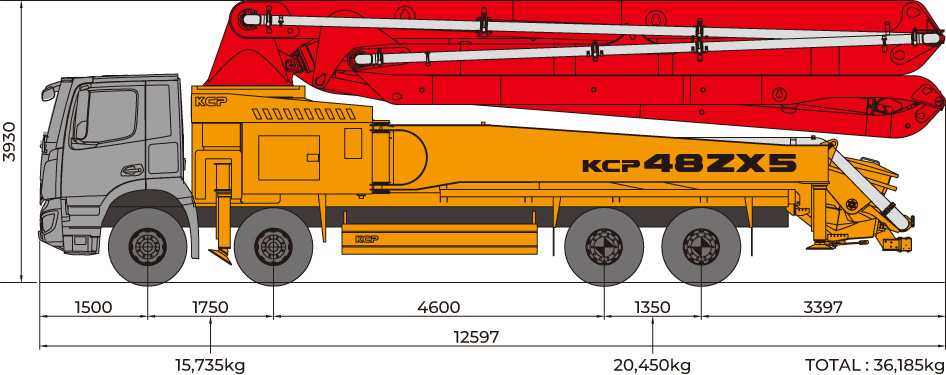

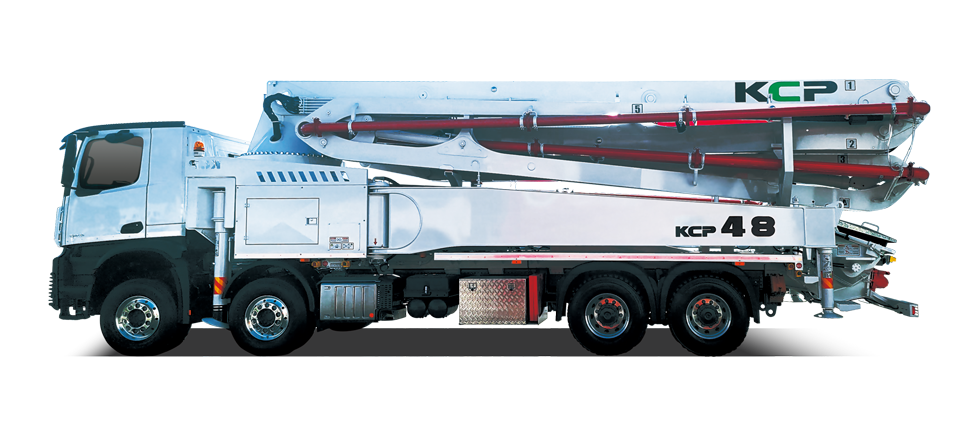

Photos and drawings are for illustrative purpose only.
Dimension will vary with different truck makers, models and specifications.
Right to make technical amendments reserved.
Dimension will vary with different truck makers, models and specifications.
Right to make technical amendments reserved.
